Fire Resistant Cabinets

Micro Data 61 Cabinet
Fire Resistant Cabinets

Chubb Safes Micro provides first class fire protection for computer media.

Tapes and diskettes are very vulnerable to heat, dust, humidity and magnetic fields.

Computer media needs a far better protection than information stored on paper.

The Micro is tested and approved by one of the most demanding fire test in the world, the UL Class 125 1 hour fire endurance test.

A. 52°c is the maximum internal temperature after 60 minutes of severe fire.

B. Combined Explosion (quick heating) and fire impact test.

C. Slam shut action for quick and convenient closing of the door.

Dimensions
Height/Outer 658 mm
Width 600 mm
Depth 651 mm
Height/Inner Drawer 388 mm
Width 360 mm
Depth 433 mm
Capacity 61 litre
Net Weight 150 kg
Door Swing 180°
Colour RAL 9002 off white

Fire Resistant CabinetsThese products are designed for recommended storage of computer media. For protection against physical attack, ask for details of our range of safes.

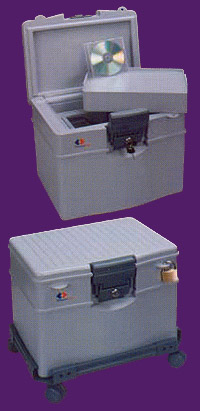

Secure Media Cooler
Fire Resistant - Secure Cooler

Are you looking for a portable fire protection solution to protect your data media? If so, Secure Media Cooler is your answer.

The Secure Media Cooler is specially developed to protect your irreplaceable, electronically stored files and records from a fire. The cooler is a portable and compact stand-along unit, that is made to protect all kinds of vital data media formats, like CD/DVD's, zip disks, diskettes, microfilm and data cartridges.

Model

The Secure Media Cooler has a volume of 4.2 litres and capacity to hold more than 40 CD/DVD's and is easily stored in a cabinet, under a desk, or even in your car for instance.

Locking

All coolers are equipped with a latch and secured by a cylinder key lock with two keys. As standard the units are prepared for an additional padlock for increased security.

Certification

The Secure Media Cooler is tested with certified to UL72 Class 125 for 1 Hour protection against fire and humidity.

Additional features

The Secure Media Cooler is specially designed to protect your data against the irreversible effects of fire, heat, humidity and dust. The Cooler is designed to be a portable unit and, as standard, it is delivered with an easy-roll detachable cart with caster wheels to make moving even easier.

Design

The Secure Media Cooler has a modern sophisticated design and will complement any user environment. The Coolers are supplied light grey and the latch is in dark grey finish.

Model Article No.
External (mm)
Internal (mm)
Volume
Weight
CD/DVD (qty)

Height
Width
Depth
Height
Width
Depth
(litres)
(kg)
10mm case
5mm case
MC-33 SL00200
333
403
316
152
214
127
4.2
30
21
42









LARGE PROFESSIONAL

Data Plus +

Fire Resistant, cabinets, Data PlusNEW: bigger capacity, maximised protection

The NEW DataPlus+ range from Chubbsafes has been expertly designed to ensure
you have the best protection for your vital data media now with extra capacity.

Fire Resistant, cabinet, sizing



Key features

  • Easy slam action emergency closing in event of a fire
  • Generous capacity. Chubbsafes cabinets have been designed to give you more for your money than most other manufacturers’ cabinets.
  • Quality media protection
  • 2 hour datamedia protection label. Tested to the highest international standards; UL 72 and EN 1047-1. CEN Norm is certi.ed by ECB.S in class S 120 DIS
  • Easy to transport and install. Low weight ratio due to new advanced protection barrier material
  • Ability to customise by using internal fittings to optimise your storage capacity.
  • Removable front plate allows useage of a pallet loader for a more efficient installation, additionally allowing a cost advantage to the customer.
  • Ability to base fix to the floor for an effective prevention of physical removal.
  • The cabinet is fitted with a keylock as a standard. However, you may require the monitoring of access to your sensitive data and therefore we have a series of electronic locks ranging from basic locking to more sophisticated audit trails.
  • The cabinet is an attractive light grey which fits in well in most office interiors.



Product Specifications

External Dimensions (mm)
Internal dimensions (mm)
Internal Vol.
Weight*
Fittings
Height Width Depth Height Width Depth (litres) (kgs) Adjustable shelf Pullout platform Suspended pocket shelf Lockable cupboard
Size 1
911 746 780 565 490 400 111 315 * * * *
Size 2
1191 746 780 845 490 400 167 390 * * * *
Size 3
1471 746 780 1125 490 400 221 490 * * * *
Size 4
1941 746 780 1595 490 400 313 640 * * * *

* Weight refers to an empty cabinet
** A double cupboard is only available in size 5
*** External depth is gross measurement incl. 60mm for handle which can be removed for installation



Capacity Chart

Media Tapes Per Shelf
(level)
Storage
Model
Size 1 Size 2 Size 3 Size 4
Dimension (mm)     no of shelves total capacity no of shelves total capacity no of shelves total capacity no of shelves total capacity
Magnetic Discs
DLT - tapes

110 x 112 x 30
48
F + L
4
192
7
336
9
432
13
624
LTO tapes
110 x 112 x 30
48
F + L
4
192
7
336
9
432
13
624
DDS 4 mm (DC 4)
80 x 58 x 16
124
F + L
8
992
12
1488
16
1984
22
2728
DDS 8 mm (DC 8)
102 x 68 x 20
79
F + L
7
553
10
790
14
1106
19
1501
DAT Cassettes
80 x 60 x 15
134
F + L
8
1072
12
1608
16
2144
22
2948
Data Cartridges 3,5”
96 x 100 x 12
144
F + L
5
720
7
1008
10
1440
14
2016
Data Cartridges 5,25”
141 x 159 x 17
69
F
3
207
4
276
6
414
9
621
AIT Data Cartridge (Sony)
67 x 112 x 21
108
F + L
4
432
7
756
9
972
13
1404
Travan Data Cartridge (Sony)
78 x 100 x 19
100
F
5
500
7
700
10
1000
14
1400
On Stream ADR (Verbatim)
129 x 95 x 15
89
F + L
5
445
7
623
10
890
14
1246
SLR / MLR 5,25” (Imation)
116 x 161 x 21
54
F + L
3
162
4
216
6
324
9
486
PD Cartridge (Fuji)
135 x 124 x 8
153
F + L
4
612
6
918
8
1224
12
1836
IBM 3480 / 3490
127 x 110 x 25
51
F + L
4
204
7
357
9
459
13
663
Optical and Magnetic discs:
CD / DVD ( R, RW and RAM)
142 x 124 x 10
117
F
4
468
6
702
8
936
12
1404
Diskette 3˝ (Floppy Disc)
94 x 90 x 3,0
596
F + L
5
2980
8
4768
11
6556
15
8940
Optical Disc 3,5
94 x 90 x 6
296
F + L
5
1480
8
2368
11
3256
15
4440
Optical Disc 5,25
135 x 153 x 11
112
F + L
3
336
5
560
6
672
9
1008
ZIP Disk Media
103 x 104 x 12
135
F + L
5
675
7
945
10
1350
14
1890
MO - R/W (Magneto Optical Disk)
157 x 143 x 16
62
F + L
3
186
5
310
7
434
10
620

F = frontal loading
F + L = frontal and lateral loading



Internal Fittings

Fire resistant, internal fittings, cabinet fittings
1. Lockable cupboard (size 5)   2. Lockable cupboard   3. Adjustable shelf
4. Pull out platform (with dividers)   5. Pull out platform   6. Suspended pocket shelf



Locking Options

Fire Resistant, cabinet, locking options
1. Keylock 2. Electronic Lock



Chubbsafes CS 284 Data Cabinet
Multifile - Chubbsafes CS 284 Data Cabinet

The CS 284 data cabinet provides an ideal way to store all types of magnetic media and protect them against fire, dust, pilferage and accidental damage.

The cabinets carry the coveted ECB.S S120 DIS 2 hour fire test label and offer maximum storage capacity to ensure that your essential data has the best possible protection in the event of fire.

Test to the most stringent international standard ECB.S S120 DIS 2 hour fire test.

The CS 284 carries the ECB.S S120 DIS 2 hour fire test label complying with the most stringent international fire testing standards and with European Standard EN1047-1. Test involves :

  • Furnace 'Shock' Exposure - placed into a furnace and subject to temperatures of up to 1049°c
  • The unit is then subjected to a drop test of 9.1m and reheated
  • Furnace cool out as latent heat is still present within the unit
  • Continuous monitoring of the temperature throughout cool out period

Other features

  • Key and Combination lock as standard - other locking options available
  • Non-retracting key ensuring cabinet must be locked before removal of key
  • Wide range of fittings to suit many types of media



Dimensions (mm) CS 284 Data Cabinet
External height 1927
External width (exc. hinges) 1084
External depth (exc.handle) 727.4
Projection of hinges 22
Projection of handle 57
Internal height 1592
Internal width (between racking) 817
Internal depth 453
Internal volume 589
Weight kg (approx) 1010
Floor loading kg/m2 (approx.) 1304.9



Capacity Guide CS 284 No. of drawers Media per drawer Total Capacity
4mm DAT tapes Shallow 20 249 4980
Deep 16 249 3984
8mm DAT tapes Shallow 18 146 2628
Deep 16 146 2336
CD Rom / DVD Deep 9 234 2106
D.L.T tapes Deep 11 81 891
Product : Information
Net Weight (kg) (approx) 1010
Area of Plinth (m2) 0.744
Floor Loading (kh / m2) 1305
Internal Fitting Options for CS 284 Data Cabinet
a Fixed Shelves
b Pull Out Drawer
c Disc Pack Tray
d Disc Catridge Rack
e Tape Reel Rack
f Shallow Pull Out Drawer
g Suspension Rail
h Lift Out Tray
Locking:
Key and Combination lock are available as standard.
Other lock option available on request.
